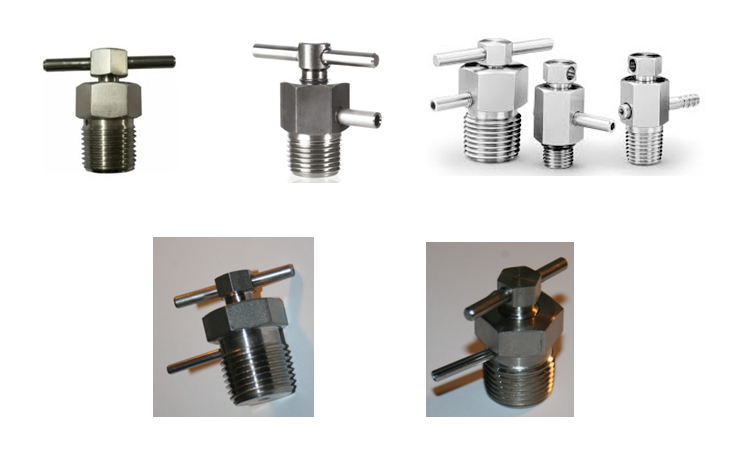

| Plug / Bonnet Type Valve Technical Specifications | |
|---|---|
| Design Standard | MSS-SP-99 / ASME B16.34 |
| Design Type | Plug Type & Bonnet Type |
| Body Design | Hex Body |
| End Connection Size | 1/4’’ to 1’’ |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) |
| Pressure Rating | 0 to 413 Bar (6000 Psi) |
| Temperature Rating | 0 to 550°C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Needle Type | Hard Seated (Cone / Ball Type) |
| Stem Packing | PTFE / PEEK / Grafoil |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also available with Material Compliance to NACE MR-01-75. |
