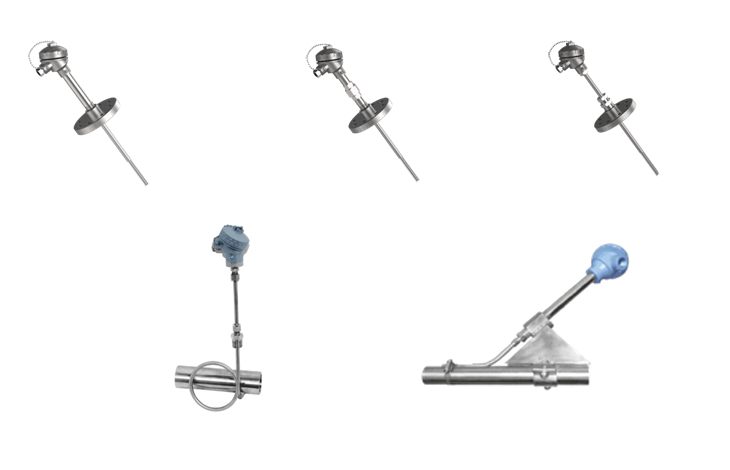

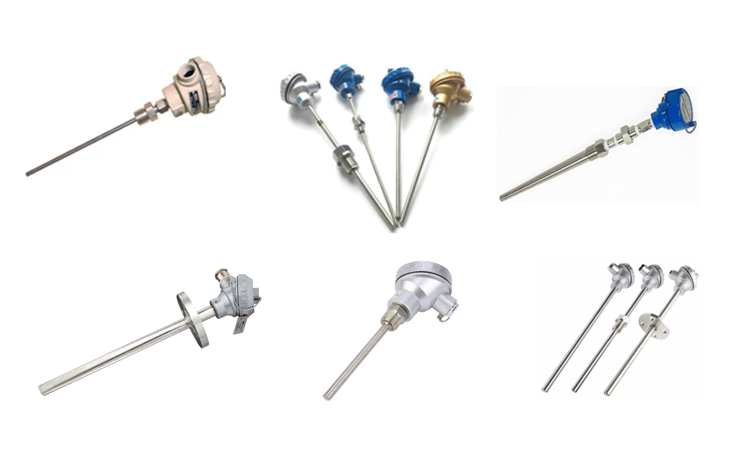

| RTD Type | Nipple Extension Type, Nipple-Union-Nipple Extension Type, Fixed Threaded Connection Type, Adjustable Threaded Connection Type, Transition Joint Type, Plug & Jack Connector Type, Bearing Type, Weld Pad / Surface Mounting Type, RTD Assembly with Tri-clover Connection Type |
| Element | PT-100 / 500 / 1000, Class A / B; Range: -200 to 400 / 600° C |
| Wire Combination | Simplex / Duplex, 2 Wire / 3 Wire / 4 Wire |
| Accuracy | IEC-751 / DIN 43760 |
| Sheath Material | SS316 / SS316L / SS304 |
| Sheath Diameter | 3 / 5 / 6 / 8 / 10 mm |
| Terminal Head Type | Threaded Cover / Hinged / 2 Screwed / Weather - IP65/66/68 / Flame Proof / Explosion Proof / Atex |
| Terminal Head Material | Die Cast Aluminium / SS304 / SS316 |
| Cable Entry | 3/4'' ET/NPT, 1/2'' NPT, M20 |
| Head Extension Length | 50 mm up to 250 mm |
| Head Extension | Nipple, Nipple-Union-Nipple, Fixed Connection, Adjustable Connection |
| Immersion Length | 50 mm up to 10000 mm |
| Process Connection | 1/2'' / 3/4'' - BSPM / NPTM, M20(M) |
| Others | Terminal Block PCD-33/46 mm, Single / Double Compression Gland |
| Lead Wire Length | 1000 to 25000 mm |
| Lead Wire Type | PTFE / SS Braided / FG |
| Mounting | Local / No Bracket / With Bracket / 2'' Pipe Mounting Bracket / Surface Mounting |
| Weld Pad | Rectangle / Integral Collar |
