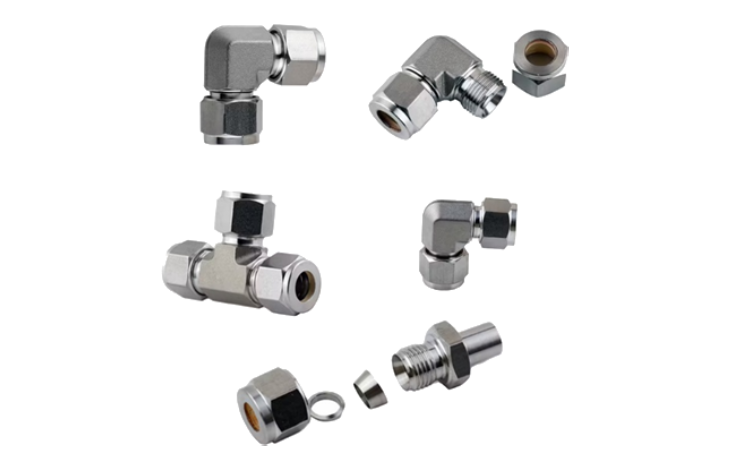

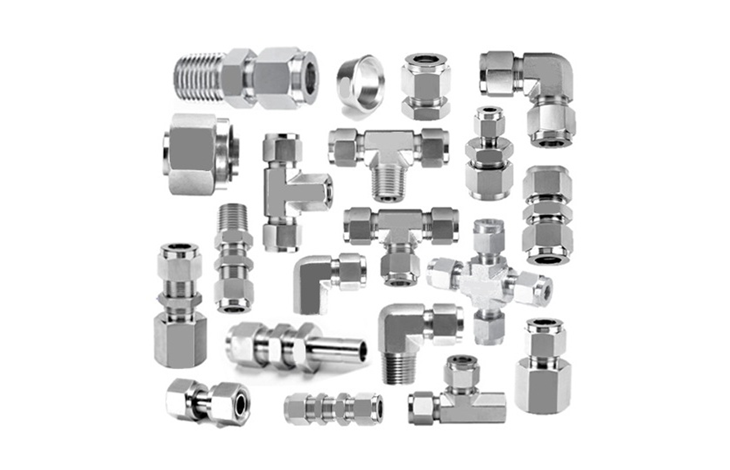

| Compression Tube Fittings | |
|---|---|
| Design Standard | BS 4368-4 / JIS B2351 / ASTM F1387 |
| Design Type | Connector, Union, Elbow, Tee, Cross, Tube Cap & Tube Plug |
| Body Design | Hex, Round, Pipe & Forged Body |
| End Connection Size | 1/4’’ (6mm) OD to 1’’ (28mm) OD |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) / SW / BW |
| Pressure Rating | 0 to 700 Bar (10,000 Psi) |
| Temperature Rating | -60⁰C to +1200⁰C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
