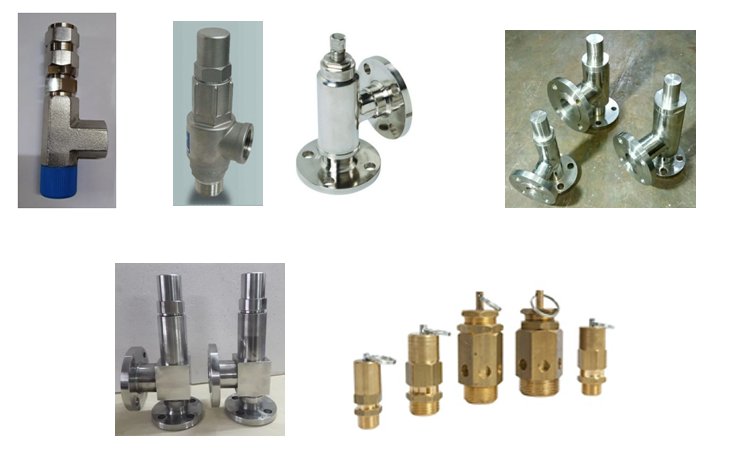

| Safety Valves | |
|---|---|
| Design Standard | ASME B16.34 / MSS-SP-99 / API 526 |
| Design Type | Straight Type & Angle Type |
| Body Design | Hex Body, Square Body, Round Body & Forged Body |
| End Connection Size | 1/4’’ to 2’’ |
| Connection Type | Screwed (NPT, BSP, BSPT), Tube End & Flange |
| Pressure Rating | 0 to 413 Bar (6000 Psi) |
| Temperature Rating | -60⁰C to +300⁰C |
| Packing | Nitrile (NBR) / EPDM / PTFE / Viton (FKM) / Silicone |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
