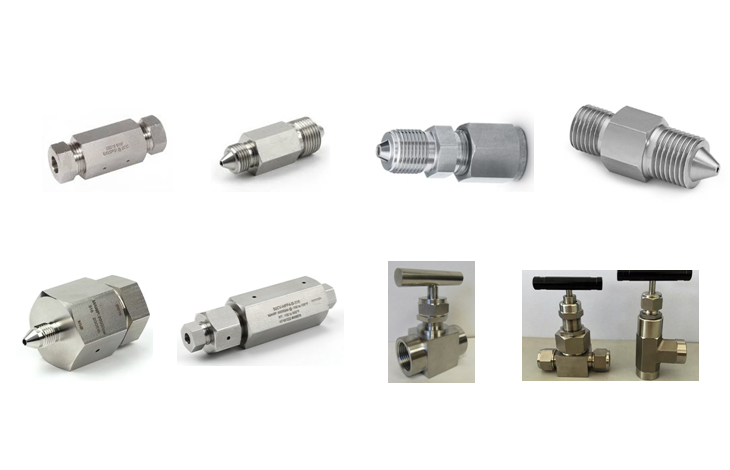

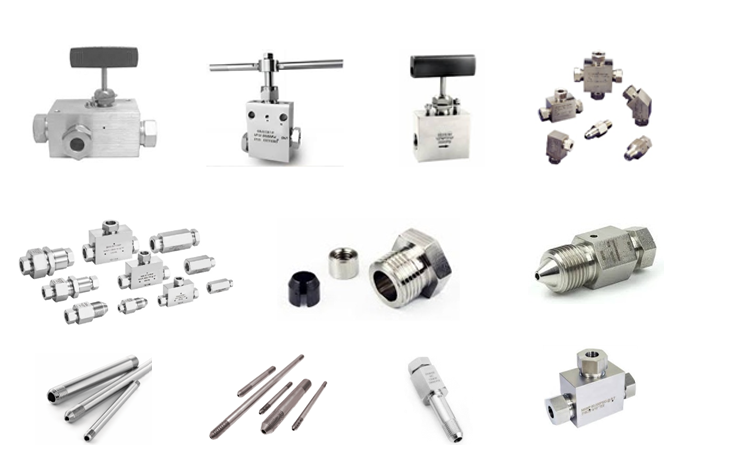

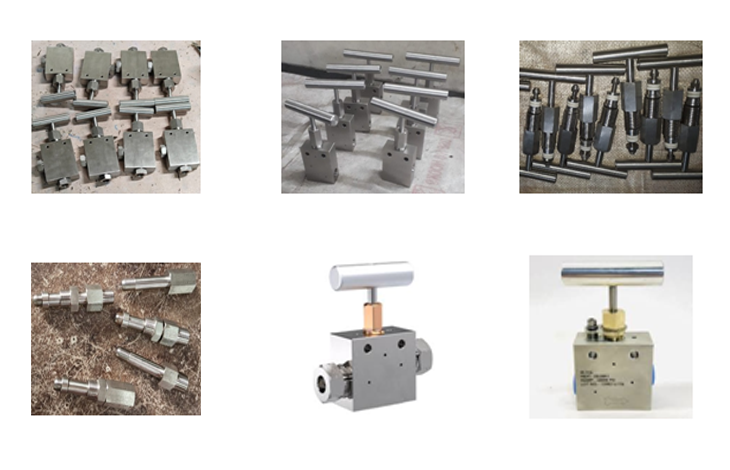

| High Pressure Valves and Fittings | |
|---|---|
| Design Type | 2 Way, 3 Way, Straight Type / Angle Type |
| Body Design | Square Body / Rectangle Body / Forged Body |
| End Conn. Type & Size | Screwed 1/4'', 3/8'' & 1/2'' (NPT, BSP, BSPT & UNF) / Tube (1/4'', 3/8'', 9/16'', 3/4'' & 1'') |
| Pressure Rating | 0 to 1380 Bar (20,000 Psi) |
| Temperature Rating | -73⁰C to +204⁰C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Body & Seat Packing | PTFE / PEEK / POM |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
