| Design Standard | EN 13190 |

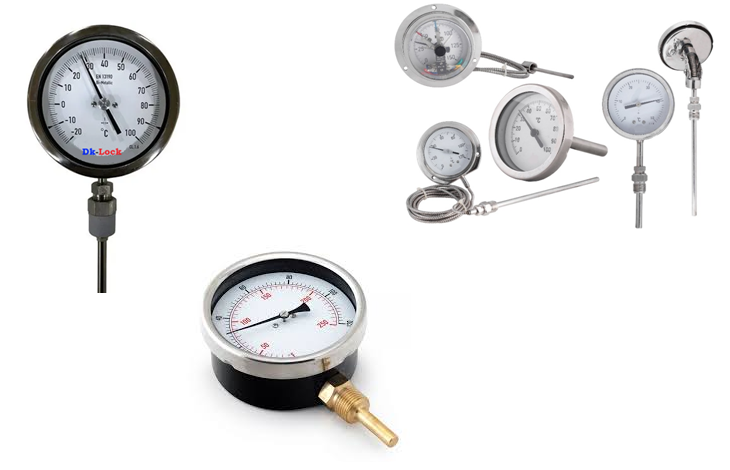

| Gauge Type | SS Bimetal TG, SS Gas Filled TG, Electric Contact TG - STD. Glass, Electric Contact TG - Doom Glass |
| Dial Size | DN40, DN50, DN63, DN80, DN100, DN125, DN150, DN250 |
| Temp. Range | -100 to 650° C |
| Accuracy | ± CL 1 |
| Mounting | Bottom / Center Back / Every Angle Clamp with Zero Adjustment |
| Process Connection | 1/4'' / 3/8'' / 1/2'' / BSPM / NPTM |
| Ingress Protection | IP65 / Hermetically Sealed Enclosure |
| Execution | Dry / Fillable |
| Electric Contact | Magnetic / Inductive Contacts, NO, NC, SPST, DPDT, NONC |
| Sensing Element | Bimetal Helix, Bourdon Tube with Temperature Compensation |
| Case & Bezel | SS304 / SS316, Stem / Probe TIG welded with Case |
