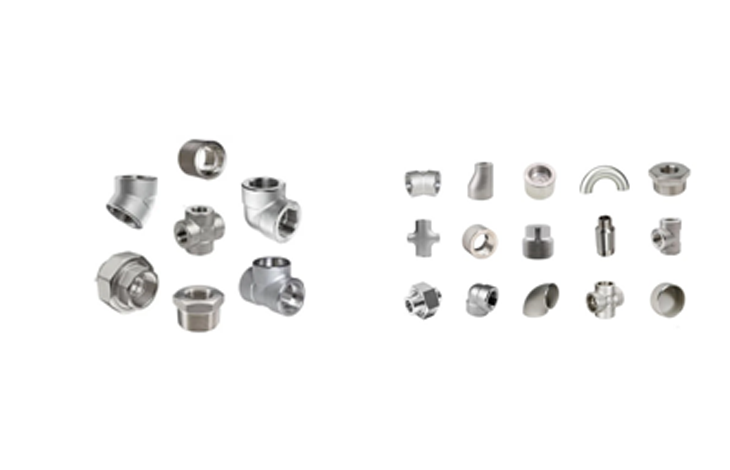

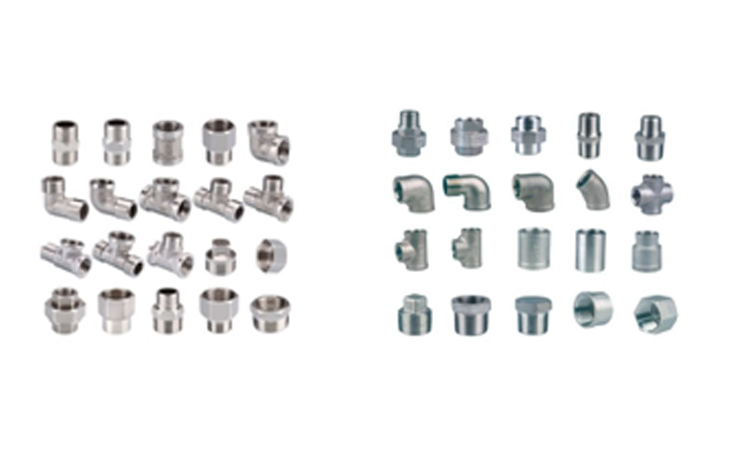

| Forged Pipe Fittings – Specification | |
|---|---|
| Design Standard | ASME B16.11 / MSS-SP-79, 83, 95, 97 |
| Design Type |
Hex Nipple, Pipe Nipple, Hose Nipple, Coupling, Cap, Plug, Union, Adapter, Reducer, Bushing, Elbow, Tee, Cross |
| Body Design | Hex, Square, Pipe & Casting Body |
| End Connection Size | 1/4’’ to 2’’ |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) / SW / BW |
| Pressure Rating | Sch40 (3000 PSI), Sch80 (6000 PSI), Sch160 (9000 PSI) |
| Temperature Rating | -60⁰C to +1200⁰C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
