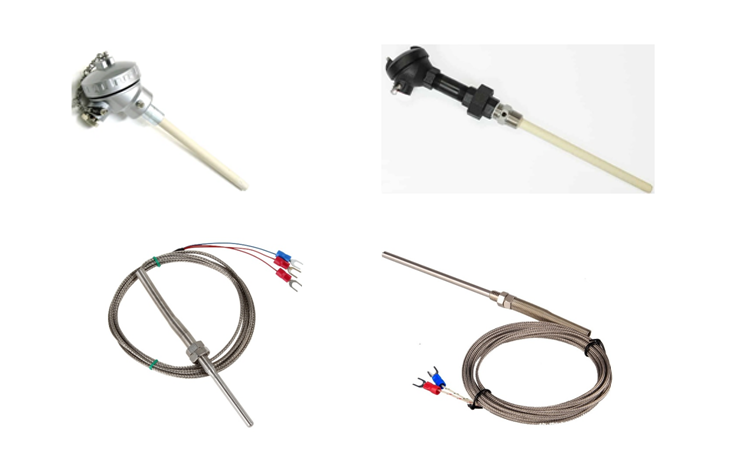

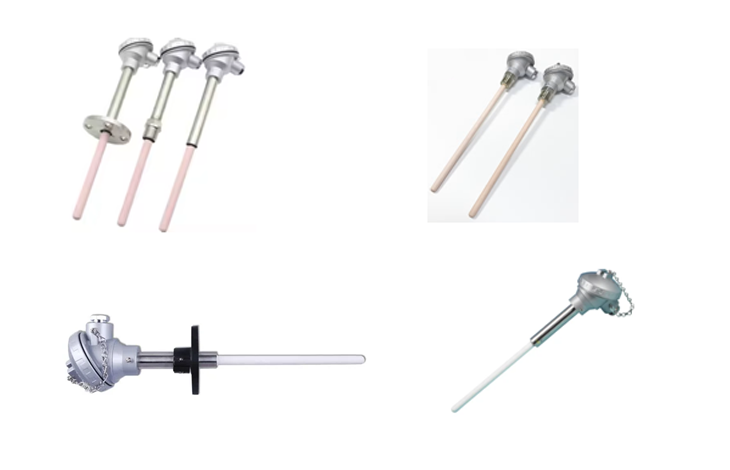

| Thermocouple Type | Nipple Extension Type, Nipple-Union-Nipple Extension Type, Fixed Threaded Connection Type, Adjustable Threaded Connection Type, Transition Joint Type, Plug & Jack Connector Type, Bearing Type, Spring Loaded Bayonet Fittings Type, Weld Pad / Surface Mounting Type, Ceramic Protection Tube with Flange / Threaded |
| Element Type | K / J / T / N / E / R / S / B |
| Accuracy | IEC-584 & ANSI MC96.1 |
| No. of Sensors | Simplex / Duplex |
| Hot Junction | Ungrounded / Grounded |
| Sheath Diameter | 3 / 5 / 6 / 8 / 10 / 12 mm |
| Sheath Material | SS316 / SS316L / SS310 / Inconel 600 / SS446 / Ceramic |
| Terminal Head Type | Threaded Cover / Hinged / 2 Screwed / Weather - IP65/66/68 / Flame Proof / Explosion Proof / Atex |
| Terminal Head Material | Die Cast Aluminium / SS304 / SS316 |
| Cable Entry | 3/4'' ET/NPT, 1/2'' NPT, M20 |
| Head Extension Type | Nipple, Nipple-Union-Nipple, Fixed Connection, Adjustable Connection |
| Head Extension Length | 50 mm up to 250 mm |
| Immersion Length | 50 mm up to 10000 mm |
| Process Connection | 1/2'' / 3/4'' - BSPM / NPTM, M20(M), Bayonet ID 12 / 14 mm |
| Others | Terminal Block PCD-33/46 mm, Single / Double Compression Gland |
| Lead Wire Length | 1000 to 25000 mm |
| Lead Wire Type | PTFE / SS Braided / FG |
| Mounting | Local / No Bracket / With Bracket / 2'' Pipe Mounting Bracket / Surface Mounting |
| Weld Pad | Rectangle / Integral Collar |
