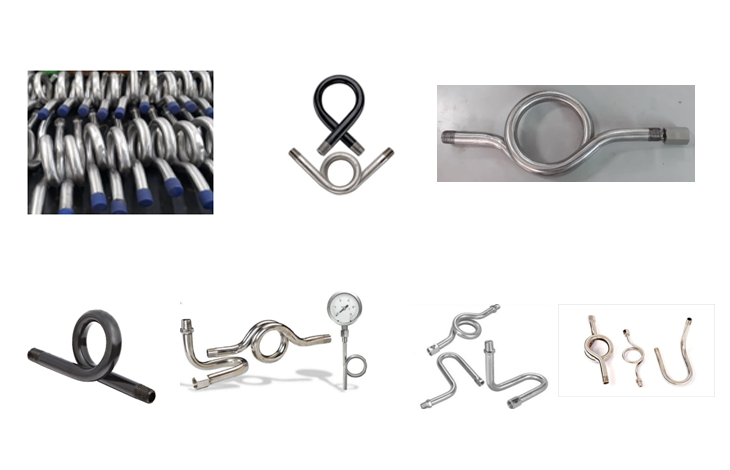

| Syphon | |
|---|---|
| Design Standard | DIN 16282 |
| Design Type | Q‑Type, U‑Type, Pigtail Type & Customized Type |
| Siphon Body | Pipe Sch40, Sch80 & Sch160 |
| End Connection Size | 1/4’’ to 1/2’’ |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) |
| Pressure Rating | 0 to 413 Bar (6000 Psi) |
| Temperature Rating | -60 °C to +100 °C |
| Material | MS / SS304 / SS316 / Inconel / Monel / Hastelloy‑C |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR‑01‑75. |
