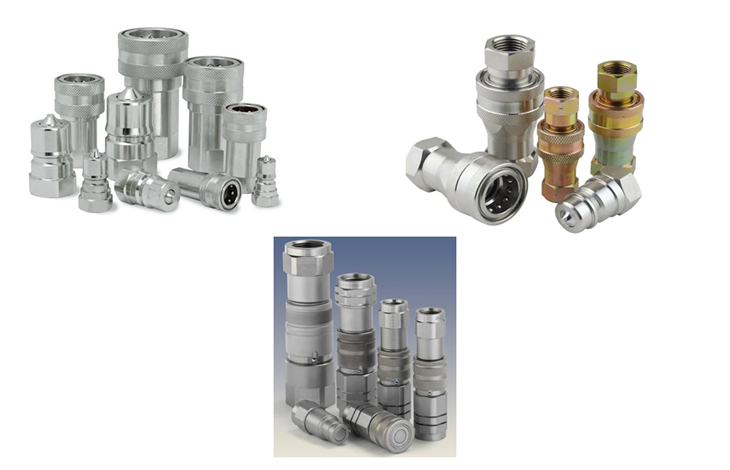

| Quick Release Coupling (QRC) | |
|---|---|
| Design Standard | ISO 7241-1 (Series A and B) / ISO 16028 |
| Design Type | Straight-through, Single Check Valve, and Double Check Valve QRCs |
| Valve Body Design | Round Body & Hex Body |
| End Connection Size | 1/4’’ to 2’’ |
| End Connection Type | Screwed (BSP / NPT / BSPT / Metric), Tube End, Hose End |
| Pressure Rating | 0 to 4137 Bar (60,000 Psi) |
| Temperature Rating | -60⁰C to +300⁰C |
| Packing | Nitrile (NBR) / EPDM / Viton (FKM) / Silicone |
| Material | MS / SS304 / SS316 & Other Material on Request |
| Special Features |
100% leakage test for seat and shell. Complete Material Traceability. Available with Material compliance to NACE MR-01-75. |
