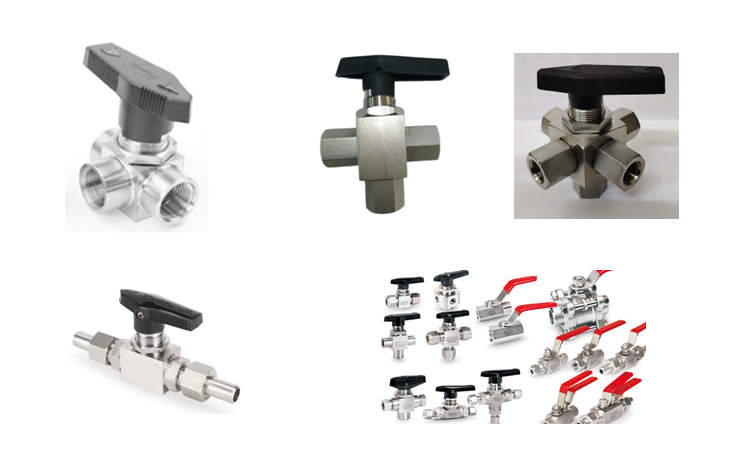

| Panel Mounting Ball Valves | |
|---|---|
| Design Standard | MSS-SP-99, ANSI B16.34 / API 608 |
| Valve Type Design | 2 Way, 3 Way & 4 Way (Straight & Angle Type) |
| Valve Body Design | Square Body & Forged Body |
| End Connection Size | 1/4’’ to 1’’ & 1/4'' (6mm) OD ~ 1'' (25mm) OD |
| End Connection Type | Screwed (NPT, BSP, BSPT) / Tube End / SW / BW |
| Pressure Rating | 0 to 525 Bar (8000 Psi) |
| Temperature Rating | -60⁰C to +300⁰C |
| Body Packing | Nitrile (NBR) / EPDM / Viton (FKM) / Silicone |
| Ball & Stem Packing | PTFE / POM (Delrin) / PEEK |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
