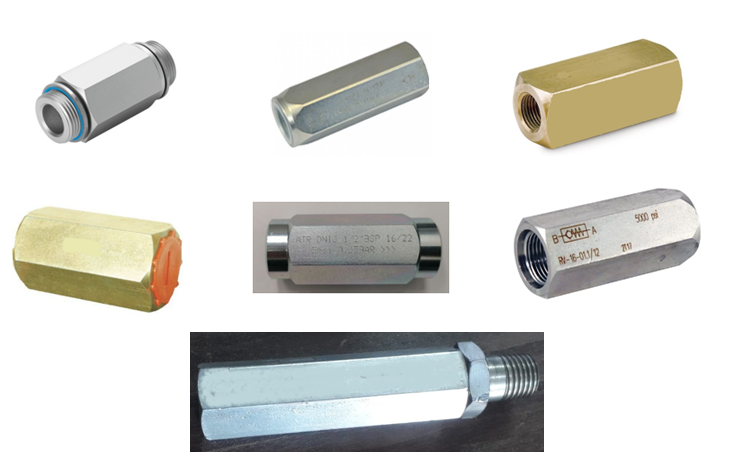

| NRV (Non Returner Valves) | |
|---|---|
| Design Standard | ASME B16.34 / BS 5352 / API 6D / API 594 |
| Body Design | 1PC & 2PC (Horizontal / Vertical Both Type) |
| Valve Body Shape | Hex Body, Square Body & Round Body |
| End Connection Size | 1/4’’ to 2’’ |
| Connection Type | Screwed (BSP, UNF & Metric) |
| Pressure Rating | 0 to 525 Bar (8,000 Psi) |
| Temperature Rating | -60⁰C to +300⁰C |
| Packing | Nitrile (NBR) / EPDM / Viton (FKM) / Silicone |
| Material | MS A105 |
| Special Features |
100% leakage test for seat and shell. Complete Material Traceability. Available with Material compliance to NACE MR-01-75. |
