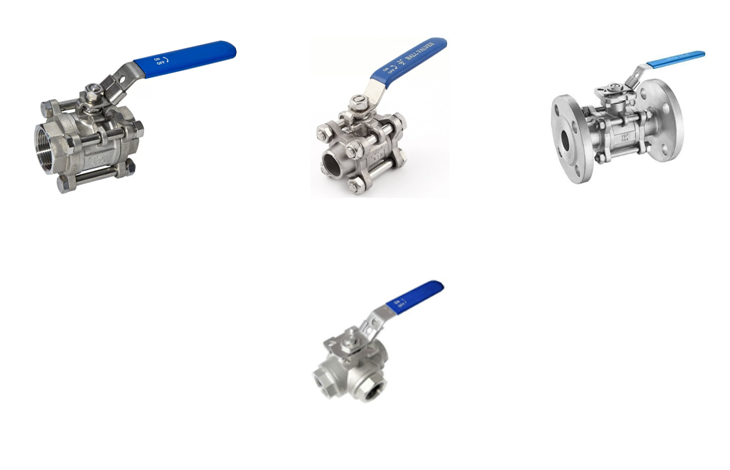

| Investment Costing Ball Valves | |
|---|---|
| Design Standards | API 6D / EN ISO 17292 / ASME B16.34 / BS 5351 |
| Valve Type Design | 2PC & 3PC Straight Type |
| Valve Body Design | Cast Body |
| End Connection Size | 1/4’’ to 2’’ |
| End Connection Type | Screwed (BSP / NPT / BSPT), Socket Weld, Butt Weld, Flanged End & Other Thread on Request |
| Pressure Rating | Upto 1500# |
| Temperature Rating | -60⁰C to +250⁰C |
| Body Packing | Nitrile (NBR) / EPDM / Viton (FKM) / Silicone |
| Ball & Stem Packing | PTFE / POM (Delrin) / PEEK |
| Material | CF8 / CF8M / WCB & Other Material on Request |
| Special Features |
100% leakage test for seat and shell. Material traceability and certification available. |
