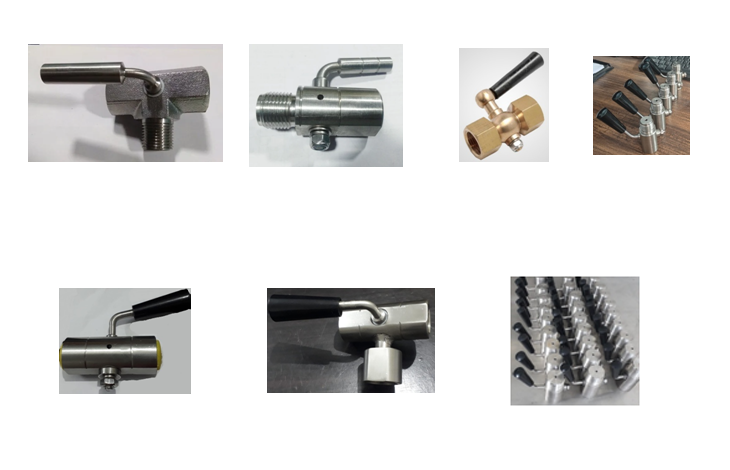

| Gauge Cock | |
|---|---|
| Design Standard | ASTM B16.34 / MSS-SP-99 |
| Design Type | 2 Way & 3 Way |
| Body Design | Round, Hex, Square & Forging Body |
| End Connection Size | 1/4’’ to 1’’ |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) |
| Pressure Rating | 0 to 100 Kg/cm² (1500 Psi) |
| Temperature Rating | -30°C to +204°C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C |
| Stem Packing | PTFE |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
