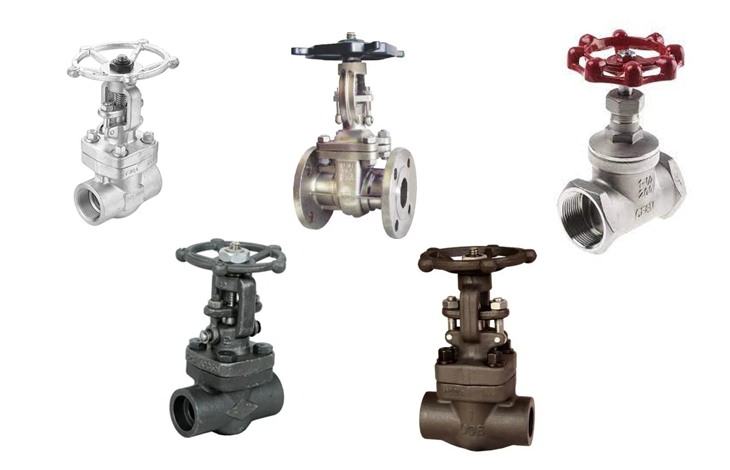

| Gate Valves | |
|---|---|
| Design Standards | API 600 / API 602 / ISO 5211 / ASME B16.34 / BS5150 |
| Valve Body Design | Square Body & Forged Body |
| End Connection Size | 1/4’’ to 2’’ |
| End Connection Type | Screwed (BSP / NPT / BSPT), Socket Weld, Butt Weld, Flanged End & Other Thread on Request |
| Pressure Rating | Upto 1500# |
| Temperature Rating | -60⁰C to +250⁰C |
| Body Packing | Nitrile (NBR) / EPDM / Viton (FKM) / Silicone |
| Ball & Stem Packing | PTFE / POM (Delrin) / PEEK |
| Material | MS / SS304 / SS316 & Other Material on Request |
| Special Features | 100% leakage test for seat and shell. Material traceability and certification available. |
