| Diaphragm Seal Type | Flanged, Threaded, Sanitary, Inline, Flush, Capillary Mounted & Direct Mounted Seals |
| Dial Size | DN100 & DN150 |
| Range | 0–250 mmwc to 0–16 Bar, 0–5 mmwc to 600 mmwc, 0–1 to 250 Bar |
| Accuracy | ±0.5%, ±1%, ±1.6%, ±2%, ±2.5% |
| Reference Standard | EN837-3 |
| Mounting | Bottom / Center Back |
| Instrument Connection | 1/4'' / 3/8'' / 1/2'' BSPF / NPTF |
| Process Connection | 1/4'' / 3/8'' / 1/2'' BSPM / NPTM / TC / Flanged |
| Ingress Protection | IP54 / IP65 / IP68 |
| Execution | Dry / Fillable / Filled |
| Case & Bezel | SS304 / SS316 / Phenolic / MS Powder Coated |

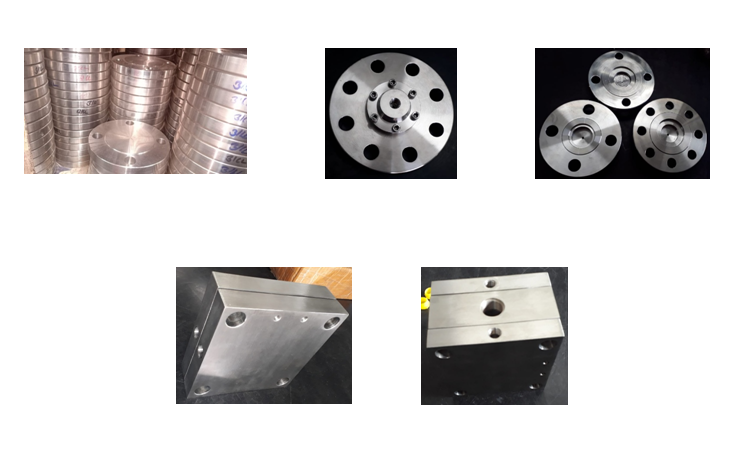

| Top & Bottom Chamber | Round Bar, Hex Bar, Square Bar & Forged Flanged |
| Chamber & Diaphragm | SS316 / Monel / Teflon / Inconel / HC-276 |
| Seal Filling Liquid | Silicon Oil / Glycerin Oil / Food Grade Oil / Syltherm |
| Optional Features | External Zero Adjustment / Fully Welded / Capillary / Capillary with Armour Tube |
