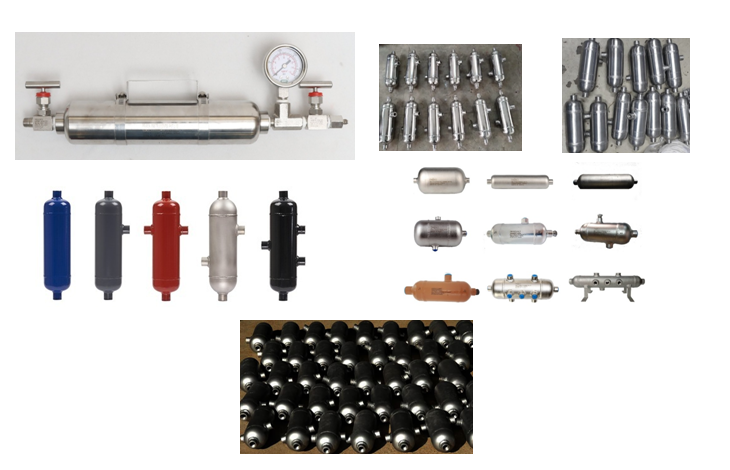

| Condensate Pot | |
|---|---|
| Design Standard | ASTM A312 |
| Design Type | 2 Way, 3 Way & 4 Way |
| Condensate Pot Body | Pipe & Cap |
| End Connection Size | 1/4’’ to 1’’ |
| End Connection Type | Screwed (NPT, BSP, BSPT & Metric) |
| Pressure Rating | 0 to 413 Kg/cm² (6000 Psi) |
| Temperature Rating | 0 to 1200°C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / MS |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
