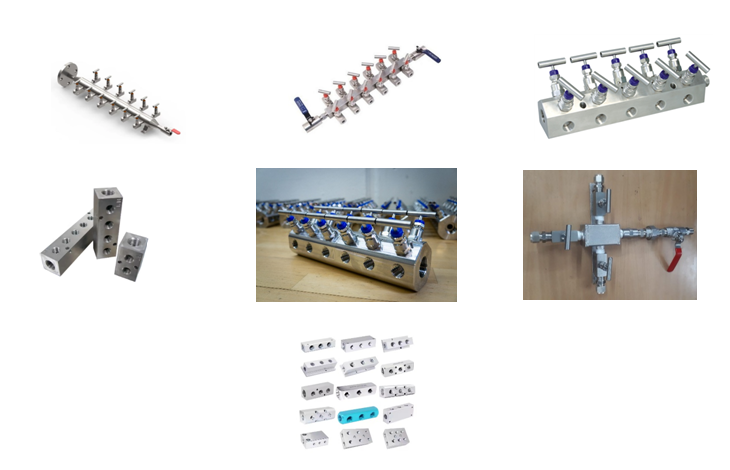

| Air Header & Distribution Manifolds Valves | |
|---|---|
| Design Standard | ASTM B16.34 / MSS-SP-99 |
| Design Type | 02 Way to 20 Way or as per Customer Requirement |
| Body Design | Square Body, Rectangle Body, Hex Body, Pipe & Cap |
| End Connection Size | 1/4’’ ~ 2’’ Screwed; 1/2'' 150# ~ 6'' 2500# Flanged |
| End Connection Type | Screwed (NPT, BSP, BSPT) & Flange End |
| Pressure Rating | 0 to 413 Bar (6000 Psi) |
| Temperature Rating | 0 to 550°C |
| Material | SS304 / SS316 / Inconel / Monel / Hastelloy-C / Duplex |
| Needle Type | Hard Seated (Cone / Ball Type) |
| Stem Packing | PTFE / PEEK / Grafoil |
| Special Features |
100% Leakage Test for Seat and Shell. Complete Material Traceability. Also Available with Material Compliance to NACE MR-01-75. |
